以下為系列產品選型范圍，具體型號參考性能參數表
流量范圍: 1-60m3/h
揚程范圍: 30-260m
常規產品全部現貨供應，縮短了交貨期。
應用領域：適用于各種供水、灌溉系統、降低地下水位、增壓、各種工業用途。
一、簡單介紹
系統適用于清潔水、軟化水的循環和增壓。系列采用304不銹鋼制成，在輸送含有少量的氯化物的冷水時，耐腐蝕性較好。亦適用于微堿水、脫礦物質水、316不銹鋼和氟橡膠制成的深井泵適用于腐蝕性較強的液體。曲線公差符合ISO9906，附錄A所有曲線都基于3×380V，50Hz，2850r/min測量值。所有測量都是用溫度20℃不含氣體的水進行的，曲線適用于運動粘度1mm2/s，在泵輸送的液體密度比水密度大時，必須相應的用較高輸出功率的電機。曲線粗線部分表示推薦的性能范圍。性能曲線包括諸如止回閥等可能產生的損失。
二、典型應用
供水、灌溉系統
降低地下水位
增壓
各種工業用途
三、工作條件
不含固體顆粒或纖維的稀薄清潔的非腐蝕性液體
液體溫度：最高+35℃
最大工作壓力：30巴
pH值：6.5~8.5
最大潛入深度不超過50米
四、用途范圍
本系統適用于清潔水、軟化水的循環和增壓。
本系列采用304不銹鋼制成，在輸送含有少量的氯化物的冷水時，耐腐蝕性較好。亦適用于微堿水、脫礦物質水、316不銹鋼和氟橡膠制成的泵適用于腐蝕性較強的液體。
五、型號說明

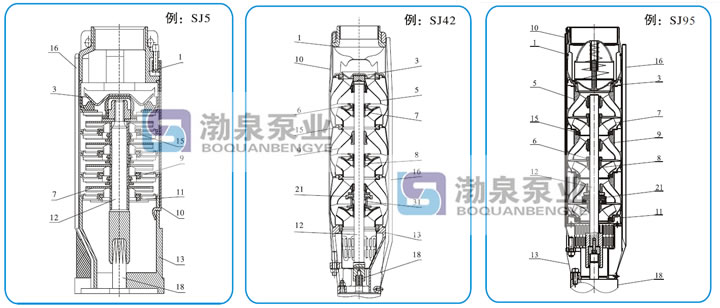

六、截面圖
|
序號
|
零件名稱
|
材料
|
對照代號/AISI/ASTM
|
|
1
|
出水體
|
不銹鋼/SS304
|
AISI304
|
|
3
|
閥蓋
|
不銹鋼/SS304
|
AISI304
|
|
5
|
出水導葉
|
不銹鋼/SS304
|
AISI304
|
|
6
|
葉輪螺母
|
不銹鋼/SS304
|
AISI304
|
|
7
|
葉輪
|
不銹鋼/SS304
|
AISI304
|
|
8
|
葉輪軸套
|
不銹鋼/SS304
|
AISI304
|
|
9
|
導葉
|
不銹鋼/SS304
|
AISI304
|
|
10
|
拉緊件
|
不銹鋼/SS304
|
AISI304
|
|
11
|
導流器
|
不銹鋼/SS304
|
AISI304
|
|
12
|
泵軸
|
不銹鋼/SS304/420/431
|
AISI304/420/431
|
|
13
|
支架
|
不銹鋼/SS304
|
AISI304
|
|
15
|
口環
|
PBT/NBR
|
|
|
16
|
電纜護套
|
不銹鋼/SS304
|
AISI304
|
|
18
|
電機
|
|
|
|
21
|
進水隔套
|
石墨
|
|
|
31
|
聯接套
|
不銹鋼/SS304
|
AISI304
|
|
型號
|
揚程(m)
|
流量(m3/h)
|
電機功率(KW)
|
轉速(r/min)
|
|
SJ1-6
|
30
|
1
|
0.37
|
2850
|
|
SJ1-9
|
46
|
1
|
0.37
|
2850
|
|
SJ1-13
|
67
|
1
|
0.55
|
2850
|
|
SJ1-17
|
87
|
1
|
0.75
|
2850
|
|
SJ1-21
|
108
|
1
|
1.1
|
2850
|
|
SJ1-25
|
129
|
1
|
1.1
|
2850
|
|
SJ1-28
|
145
|
1
|
1.5
|
2850
|
|
SJ1-32
|
165
|
1
|
1.5
|
2850
|
|
SJ1-36
|
186
|
1
|
1.5
|
2850
|
|
SJ1-39
|
202
|
1
|
2.2
|
2850
|
|
SJ1-42
|
217
|
1
|
2.2
|
2850
|
|
SJ1-46
|
238
|
1
|
2.2
|
2850
|
|
SJ1-50
|
260
|
1
|
2.2
|
2850
|
|
SJ3-6
|
24
|
3
|
0.37
|
2850
|
|
SJ3-9
|
36
|
3
|
0.55
|
2850
|
|
SJ3-12
|
49
|
3
|
0.75
|
2850
|
|
SJ3-15
|
61
|
3
|
1.1
|
2850
|
|
SJ3-18
|
74
|
3
|
1.1
|
2850
|
|
SJ3-22
|
91
|
3
|
1.5
|
2850
|
|
SJ3-27
|
111
|
3
|
2.2
|
2850
|
|
SJ3-32
|
131
|
3
|
2.2
|
2850
|
|
SJ3-38
|
157
|
3
|
3
|
2850
|
|
SJ3-43
|
178
|
3
|
3
|
2850
|
|
SJ5-4
|
15
|
5
|
0.37
|
2850
|
|
SJ5-6
|
22
|
5
|
0.55
|
2850
|
|
SJ5-8
|
30
|
5
|
0.75
|
2850
|
|
SJ5-12
|
45
|
5
|
1.1
|
2850
|
|
SJ5-17
|
64
|
5
|
1.5
|
2850
|
|
SJ5-21
|
79
|
5
|
2.2
|
2850
|
|
SJ5-25
|
94
|
5
|
2.2
|
2850
|
|
SJ5-29
|
108
|
5
|
3.0
|
2850
|
|
SJ5-33
|
123
|
5
|
3.0
|
2850
|
|
SJ5-38
|
142
|
5
|
4.0
|
2850
|
|
SJ5-43
|
161
|
5
|
4.0
|
2850
|
|
SJ8-5
|
19
|
8
|
0.75
|
2850
|
|
SJ8-7
|
27
|
8
|
1.1
|
2850
|
|
SJ8-10
|
39
|
8
|
1.5
|
2850
|
|
SJ8-12
|
47
|
8
|
2.2
|
2850
|
|
SJ8-15
|
59
|
8
|
2.2
|
2850
|
|
SJ8-18
|
71
|
8
|
3.0
|
2850
|
|
SJ8-21
|
83
|
8
|
4.0
|
2850
|
|
SJ8-25
|
99
|
8
|
4.0
|
2850
|
|
SJ8-30
|
119
|
8
|
5.5
|
2850
|
|
SJ8-37
|
147
|
8
|
5.5
|
2850
|
|
SJ8-44
|
174
|
8
|
7.5
|
2850
|
|
SJ8-50
|
198
|
8
|
7.5
|
2850
|
|
SJ12-5
|
25
|
12
|
1.5
|
2850
|
|
SJ12-7
|
35
|
12
|
2.2
|
2850
|
|
SJ12-10
|
50
|
12
|
3.0
|
2850
|
|
SJ12-13
|
66
|
12
|
4.0
|
2850
|
|
SJ12-15
|
76
|
12
|
5.5
|
2850
|
|
SJ12-18
|
91
|
12
|
5.5
|
2850
|
|
SJ12-21
|
106
|
12
|
7.5
|
2850
|
|
SJ12-25
|
126
|
12
|
7.5
|
2850
|
|
SJ17-1
|
6.5
|
17
|
0.55
|
2850
|
|
SJ17-2
|
13.5
|
17
|
1.1
|
2850
|
|
SJ17-3
|
20.5
|
17
|
2.2
|
2850
|
|
SJ17-4
|
28
|
17
|
2.2
|
2850
|
|
SJ17-5
|
35
|
17
|
3.0
|
2850
|
|
SJ17-6
|
42
|
17
|
4.0
|
2850
|
|
SJ17-7
|
49
|
17
|
4.0
|
2850
|
|
SJ17-8
|
57
|
17
|
5.5
|
2850
|
|
SJ17-9
|
64
|
17
|
5.5
|
2850
|
|
SJ17-10
|
72
|
17
|
5.5
|
2850
|
|
SJ17-11
|
79
|
17
|
7.5
|
2850
|
|
SJ17-13
|
87
|
17
|
7.5
|
2850
|
|
SJ17-12
|
95
|
17
|
7.5
|
2850
|
|
SJ17-14
|
102
|
17
|
9.2
|
2850
|
|
SJ17-15
|
109
|
17
|
9.2
|
2850
|
|
SJ17-16
|
116
|
17
|
9.2
|
2850
|
|
SJ17-17
|
123
|
17
|
9.2
|
2850
|
|
SJ17-18
|
130
|
17
|
11
|
2850
|
|
SJ17-19
|
138
|
17
|
11
|
2850
|
|
SJ17-20
|
145
|
17
|
11
|
2850
|
|
SJ17-21
|
152
|
17
|
13
|
2850
|
|
SJ17-22
|
160
|
17
|
13
|
2850
|
|
SJ17-23
|
167
|
17
|
13
|
2850
|
|
SJ17-24
|
174
|
17
|
13
|
2850
|
|
SJ17-25
|
181
|
17
|
15
|
2850
|
|
SJ17-26
|
189
|
17
|
15
|
2850
|
|
SJ30-1
|
7.5
|
30
|
1.1
|
2850
|
|
SJ30-2
|
15
|
30
|
2.2
|
2850
|
|
SJ30-3
|
22
|
30
|
3.0
|
2850
|
|
SJ30-4
|
29
|
30
|
4.0
|
2850
|
|
SJ30-5
|
37
|
30
|
5.5
|
2850
|
|
SJ30-6
|
44
|
30
|
5.5
|
2850
|
|
SJ30-7
|
52
|
30
|
7.5
|
2850
|
|
SJ30-8
|
59
|
30
|
7.5
|
2850
|
|
SJ30-9
|
66
|
30
|
9.2
|
2850
|
|
SJ30-10
|
74
|
30
|
9.2
|
2850
|
|
SJ30-11
|
81
|
30
|
9.2
|
2850
|
|
SJ30-12
|
88
|
30
|
11
|
2850
|
|
SJ30-13
|
96
|
30
|
11
|
2850
|
|
SJ30-14
|
103
|
30
|
13
|
2850
|
|
SJ30-15
|
110
|
30
|
13
|
2850
|
|
SJ30-16
|
118
|
30
|
15
|
2850
|
|
SJ30-17
|
125
|
30
|
15
|
2850
|
|
SJ30-18
|
132
|
30
|
18.5
|
2850
|
|
SJ30-19
|
140
|
30
|
18.5
|
2850
|
|
SJ30-20
|
147
|
30
|
18.5
|
2850
|
|
SJ30-21
|
155
|
30
|
18.5
|
2850
|
|
SJ30-22
|
162
|
30
|
22
|
2850
|
|
SJ30-23
|
169
|
30
|
22
|
2850
|
|
SJ30-24
|
177
|
30
|
22
|
2850
|
|
SJ30-25
|
184
|
30
|
22
|
2850
|
|
SJ42-1
|
8.5
|
42
|
2.2
|
2850
|
|
SJ42-2
|
17
|
42
|
3.0
|
2850
|
|
SJ42-3
|
26.5
|
42
|
5.5
|
2850
|
|
SJ42-4
|
36
|
42
|
7.5
|
2850
|
|
SJ42-5
|
45
|
42
|
7.5
|
2850
|
|
SJ42-6
|
54
|
42
|
9.2
|
2850
|
|
SJ42-7
|
63
|
42
|
11
|
2850
|
|
SJ42-8
|
72
|
42
|
13
|
2850
|
|
SJ42-9
|
80
|
42
|
15
|
2850
|
|
SJ42-10
|
89
|
42
|
15
|
2850
|
|
SJ42-11
|
98
|
42
|
18.5
|
2850
|
|
SJ42-12
|
107
|
42
|
18.5
|
2850
|
|
SJ42-13
|
116
|
42
|
22
|
2850
|
|
SJ42-14
|
125
|
42
|
22
|
2850
|
|
SJ42-15
|
134
|
42
|
22
|
2850
|
|
SJ42-16
|
143
|
42
|
25
|
2850
|
|
SJ42-17
|
152
|
42
|
25
|
2850
|
|
SJ42-18
|
161
|
42
|
30
|
2850
|
|
SJ42-19
|
170
|
42
|
30
|
2850
|
|
SJ42-20
|
179
|
42
|
30
|
2850
|
|
SJ42-21
|
188
|
42
|
37
|
2850
|
|
SJ42-22
|
197
|
42
|
37
|
2850
|
|
SJ60-1
|
6
|
60
|
2.2
|
2850
|
|
SJ60-2-2
|
10.5
|
60
|
3.0
|
2850
|
|
SJ60-2
|
12.5
|
60
|
4.0
|
2850
|
|
SJ60-3
|
20
|
60
|
5.5
|
2850
|
|
SJ60-4
|
29
|
60
|
7.5
|
2850
|
|
SJ60-5
|
37
|
60
|
9.2
|
2850
|
|
SJ60-6
|
45
|
60
|
11
|
2850
|
|
SJ60-7
|
53
|
60
|
13
|
2850
|
|
SJ60-8-2
|
56
|
60
|
13
|
2850
|
|
SJ60-8
|
61
|
60
|
15
|
2850
|
|
SJ60-9-2
|
64
|
60
|
15
|
2850
|
|
SJ60-9
|
69
|
60
|
18.5
|
2850
|
|
SJ60-10
|
77
|
60
|
18.5
|
2850
|
|
SJ60-11
|
85
|
60
|
22
|
2850
|
|
SJ60-12
|
93
|
60
|
22
|
2850
|
|
SJ60-13
|
100
|
60
|
22
|
2850
|
|
SJ60-14
|
106
|
60
|
25
|
2850
|
|
SJ60-15
|
114
|
60
|
25
|
2850
|
|
SJ60-16
|
122
|
60
|
30
|
2850
|
|
SJ60-17
|
130
|
60
|
30
|
2850
|
|
SJ60-18
|
140
|
60
|
30
|
2850
|
|
SJ60-19
|
148
|
60
|
37
|
2850
|
|
SJ60-20
|
155
|
60
|
37
|
2850
|
|
SJ60-21
|
163
|
60
|
37
|
2850
|
 |
||
